High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM

Name: High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 155MM
Brand: Yihan
Price: 628.00 USD

China High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM factory

Place of Origin : Guangdong, China

Brand Name : Yihan

Model Number : YH-800-05

Usage : Multifunctional, Stripping and cutting

Product name : wires cutting and stripping machine

Application : cutting and stripping

Stripping length : Head 0 - 15mm Tail 0-15mm

Cutting Length : 1mm-99999.99mm

Stripping range : 0.1-4.0 mm2 BVR Multi Softlines

Catheter diameter : 1.5-5MM

Size : 400*300*330

Net Weight : 30KG

Warranty : 3 year

Packaging Details : Wooden package

Price : $628.00/sets 1-2 sets

MOQ : 1 set

Contact Now

High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM

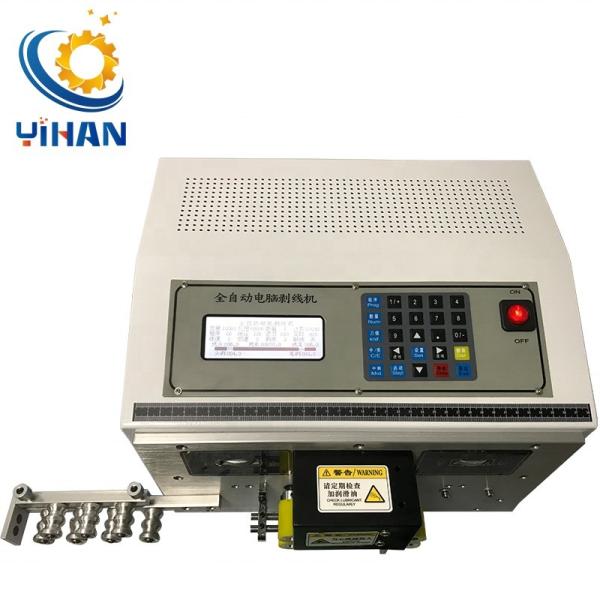

YH-800-05 High precise automatic computerized cutting and stripping machine for 4mm2 cable

Features:

1.The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display,can store hundreds of pieces of information, called at any time, fast efficiency.
2.Compatible with the general features of 330# wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.
3.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping, twisting function once completed,can instantly transform wire specifications and dimensions,it’s very economic.
4.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.

High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM

Product Description

Product Name	Automatic wires cutting stripping machine
Model	YH-800-05
Dimension	400300330mm
Net Weight	31KG
Display method	Chinese or English interface display
Power supply	AC220/250V/50/60HZ
Capacity	120-220W
Cutting length	1mm-99999mm
Cutting Tolerance	Adjustable
Peeling length	1.0mm-20mm(According to the wire)
Applicable wire core area	0.1-4.0mm2(AWG14#-AWG32#)
Productivity	3000-6000pcs/h(according to the cutting length)
Tool Material	Tungsten steel / High speed steel
Drive mode	Four simultaneously drive
Stripping Mode	Long wire/ short wire /Multi-stripping / multi stripping

High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM

Product show1

Company profile

High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM

Advantages

High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM

Certification

High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM

Packaging delivery

High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM

Problem solving

High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM

High Precision Cutting and Stripping Machine for 4mm2 Cable Catheter Diameter 1.5-5MM Images
